Reel Transporter

Operation Principle

The operating principle of the Reel Transporter is incredibly well thought out and flexible. It can transport any typical reel ranging from 3000mm to 5500mm in diameter. To understand how simple and functional this device is, let’s check its working cycle.

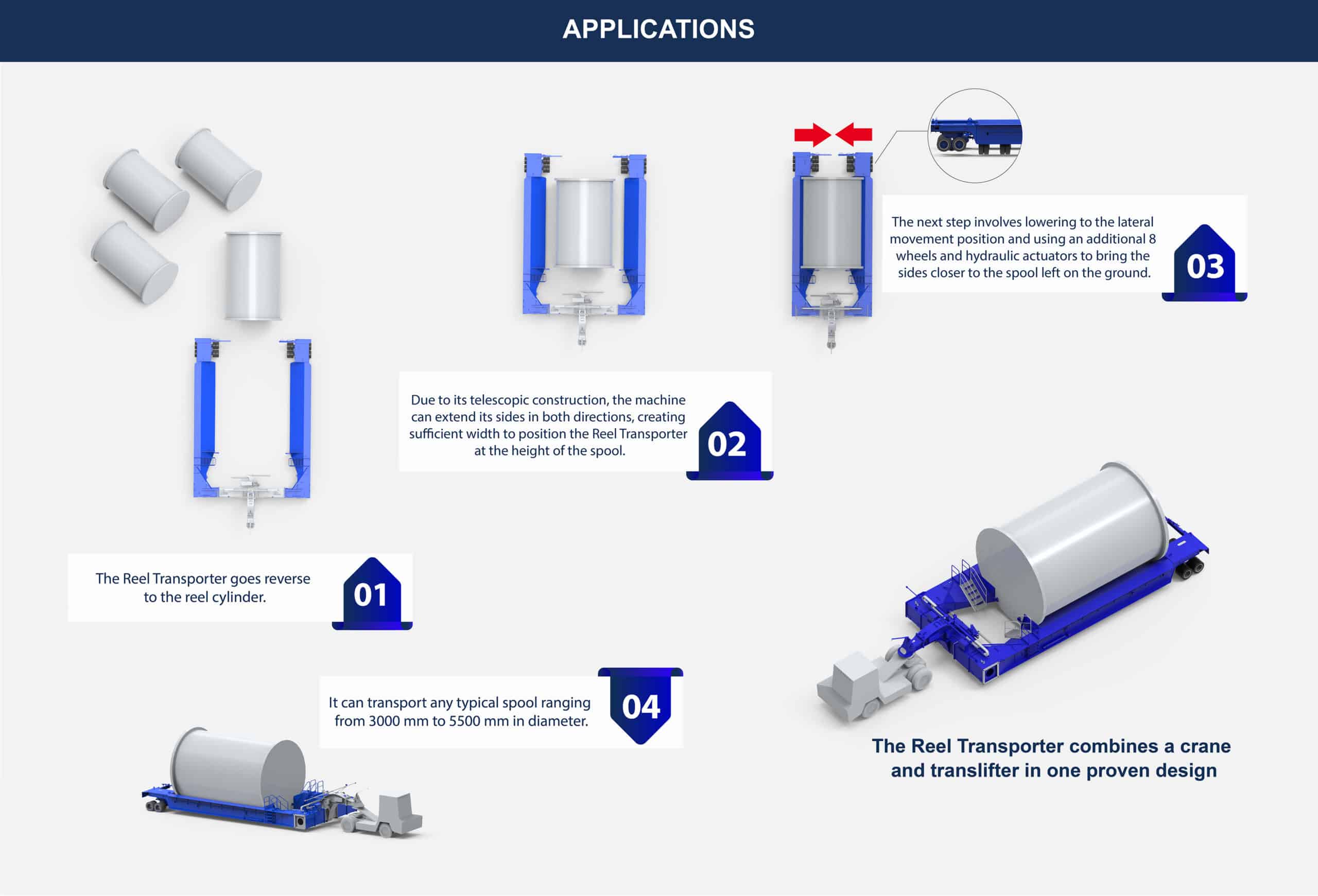

Thanks to its telescopic construction, the RT can extend its beams, providing sufficient width to approach the reel at its place. The next step involves lowering it to the side movement position, and utilizing an additional 8 wheels and hydraulic cylinders, the beams approach the reel left on the ground. After the sides touch the edges of the reel, the load must be secured with a rear locking boom and then lifted to transport height. At this point, the weight of the load rests on 16 wheels, ensuring safe weight distribution on the ground. Unloading the reel is done in reverse order.

Technical Specifications:

Capacity: lifting capacity of 100.000 kg
Dimensions: Total length of 16.850 mm, width varying between 8.420 mm and 6.300 mm
Speed: Transport speed of 5 km/h with load, 25 km/h without load
Working Cycle: Streamlined 11-step process for efficient operation
Frame Construction: Welded box construction for durability and stability
Hydraulic System: Advanced hydraulic block for lifting and steering
Electrical System: 24 VDC voltage with CAN bus control system
Bogie Construction: Hydraulic bogies with mechanical swing for enhanced maneuverability
Brakes: Pneumatically controlled drum brakes for safety and control
Working Lights: 11 LED lights for optimal visibility in all conditions
Surface Treatment: SFS4962 PUR coating for corrosion resistance
Towing Tractor Requirements: Compatible with standard towing tractors, ensuring seamless integration into existing fleets

Designed to safely leave the cable reel on the ground and lift it without additional equipmentReel Transporter
