Container Mover
The Container Mover is designed to handle containers at ports, terminals and other industrial areas. The compact design enables container handling in narrow warehouses and through low gates.
The Container Mover is capable of loading and unloading 20-45 ft. containers up to 36-ton from road and terminal trailers. Low center of gravity of the container ensures easy maneuverability at longer driving distances with high speed.
The Container Mover can be operated by one operator and a terminal tractor.
Operation
• Fully operational from tractor
• All function operated from joystick, remote or tablet
• Wide angle and rear view cameras
• Monitor with camera view (optional)
• LED rear and brake light combined with turning signals
• 6 x LED working lights
• Reversing alarm
• Parking on parking stand or container
Technical Details
Load: 36.000 kg
Weight: 18.000 kg
Driving speed: 20 – 40 km/h
Lifting height: 2.100 mm
Pneumatic tyres: 18.00-25 PR40
Wheel Capacity: 21.200 kg
Operating hydraulic pressure: 180 bar
Max hydraulic flow: 130 l/min
Operating voltage: 24 VDC
Telescopic Function
20 – 45 ft. Containers
Hydraulic telescopic function enables the Container Mover to handle continers from 20 – 45 ft.
2100 mm lifting height enables the Container Mover to lift contianers on road and terminal trailers

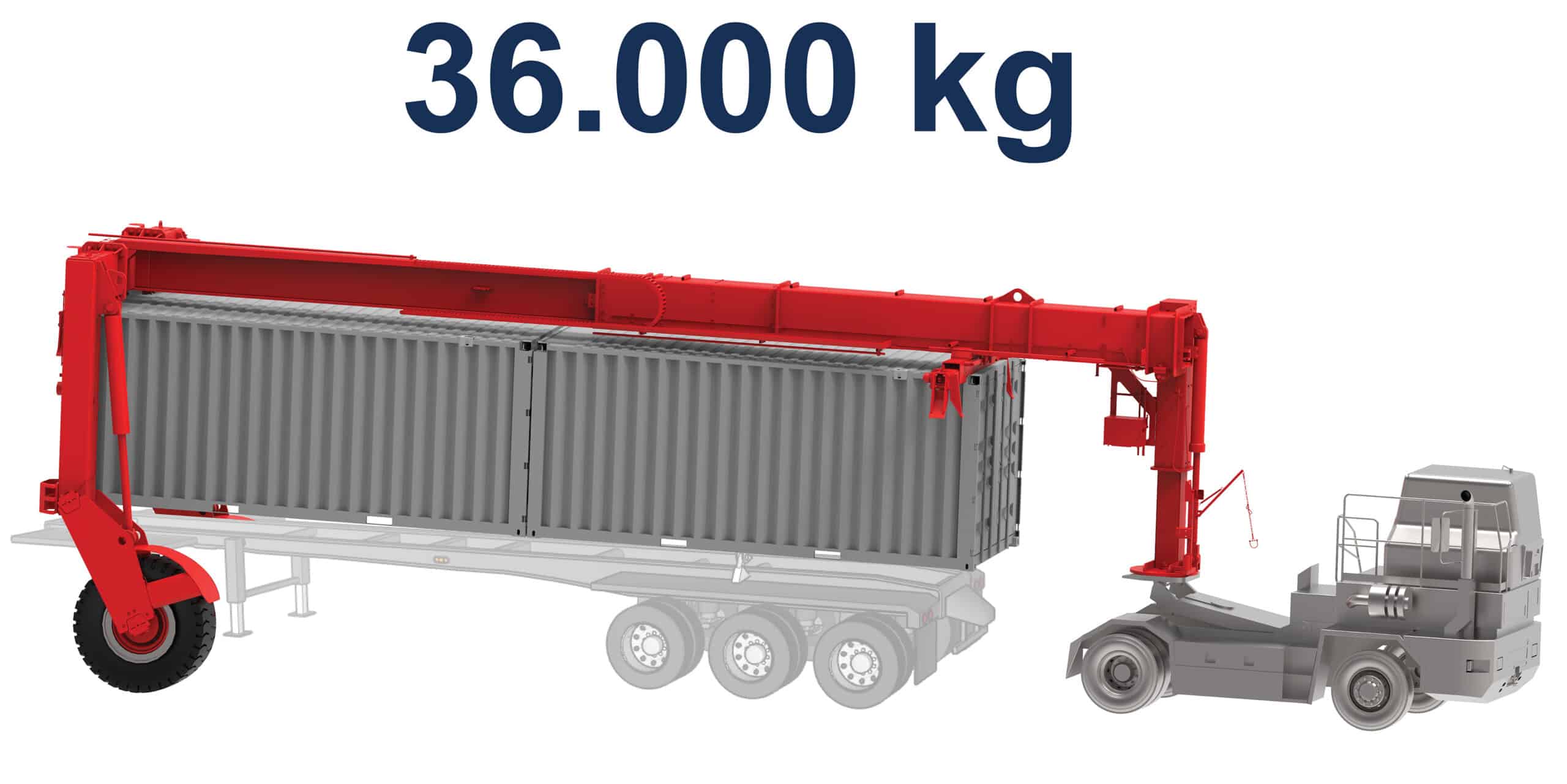

Lifting Function
±200 mm side shift for positioning of twist lock grippers, guided by sensors, enables pick up and lowering of unaligned containers.
4 x ultrasonic sensors ensure even lifting of containers.
Compact design enables container handling in low and narrow warehouses

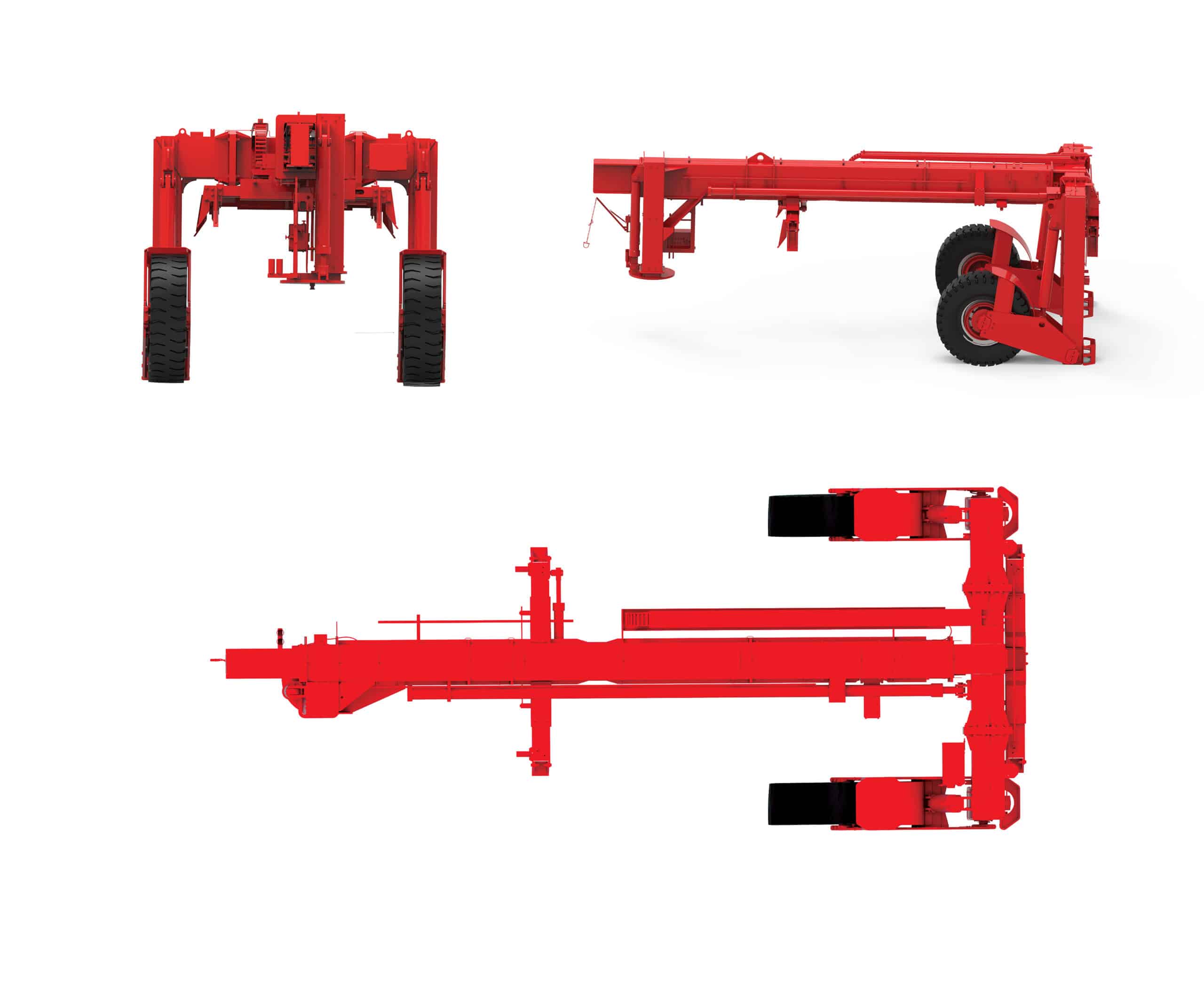

Dimensions
Standard min driving height 3830 mm
(Optional 3780 mm)
Total max length: 15500 mm
Total min length: 9865 mm
Total width: 4221 mm
Total max height: 5830 mm
Total min height: 3730 mm
Width of cargo space: 2900 mm
